Secoh JDK-80 Series Air Filter
$12.50

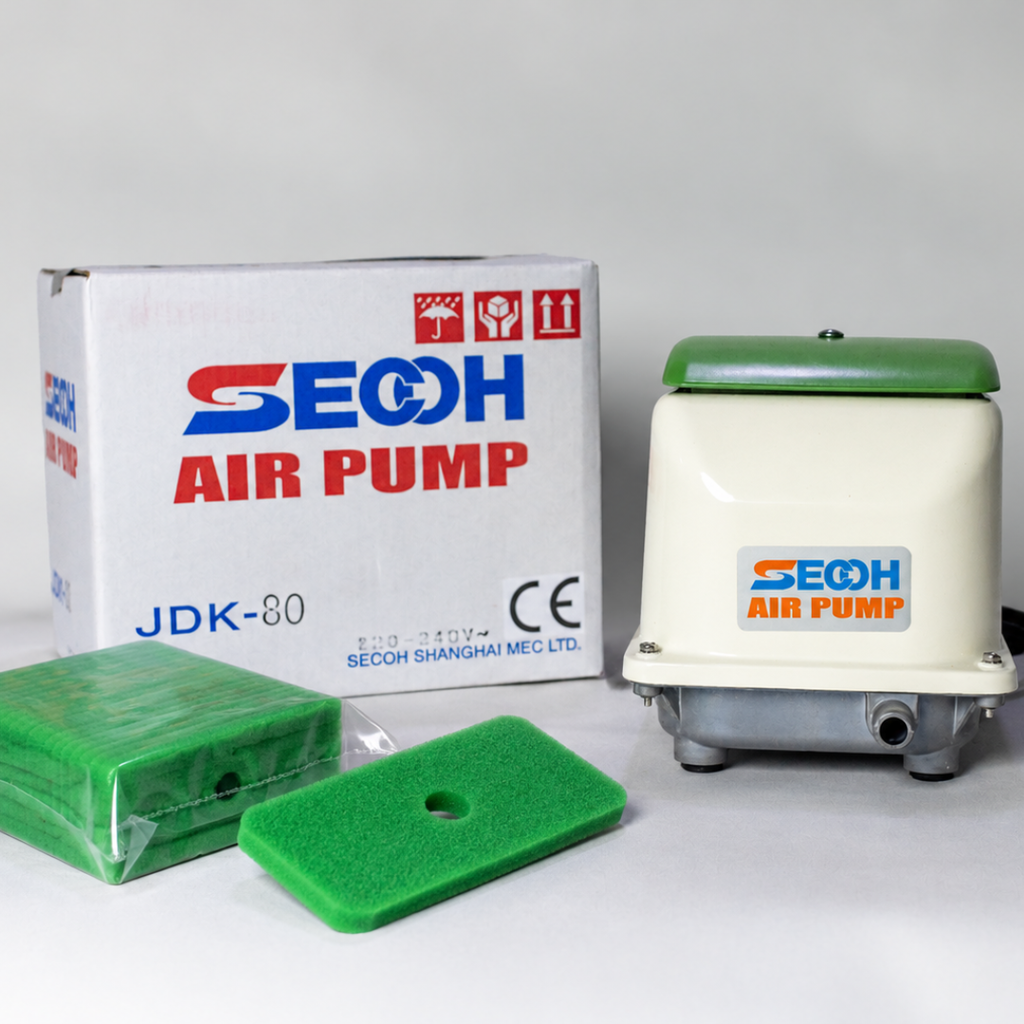

Genuine Secoh Replacement Air Filter - JDK-80 Series
Keep your Secoh JDK-80 Air Pump running smoothly with a genuine replacement Air Filter. Regular air filter maintenance is essential for preventing dust, debris, and airborne particles from entering the motor assembly, helping to protect internal diaphragms and ensure maximum operating efficiency.
Designed specifically for the Secoh JDK series, this washable and reusable filter element maintains clean, unrestricted airflow to support healthy aeration in residential aerobic wastewater treatment systems.
Key Features & Benefits:
-
Genuine Secoh Component: Designed to exact factory specifications for a seamless, secure fit on your Secoh JDK-80 Air Pump.
-
Superior Filtration: Traps dust and airborne particulates before they reach internal valve blocks and diaphragms.
-
Restores Peak Airflow: Over time, clogged filters restrict airflow, causing the pump to run hot. Swapping out your filter restores smooth, energy-efficient performance.
-
Easy Maintenance: Simple, tool-free replacement—just unclip the top cover, swap the pad, and restart.
-
Washable & Durable: High-density filter pad material allows for easy cleaning between major replacement intervals.
Maintenance Recommendations:
-
Inspect & Clean: Every 3 to 6 months (rinse with warm water, gently squeeze dry, and allow to fully dry before reinstalling).
-
Replace: Every 12 to 24 months, or sooner if the filter pad shows signs of tearing, heavy discolouration, or material breakdown.
Product Specifications:
-
Compatibility: Fits Secoh JDK-60, JDK-80, and JDK-100 series linear air pumps.
-
Material: Washable Synthetic Foam / Filter Media.
-
Condition: Brand New (Genuine Secoh Stock).
-
Country of Origin: Designed for Australian Conditions.
Product is sold as x1 individual Air Filter.
Customer reviews
Powered by Audien
Show more reviews
Customer reviews
Powered by Audien
0
0
reviews
Write a review
Powered by Audien
Merchant description
Show more
Featured
Show more reviews
Designed for Australian Conditions
Designed and developed by Secoh PRC and Secoh Australia.
Proven Reliability
Built for long service life, power saving & low maintenance.
Fast AU-Wide Shipping
Dispatched from our Australian warehouse.
Product Description - JDK-80 Air Pump
Overview
The Secoh JDK-80 Linear Diaphragm Air Pump is a high-efficiency 220V electromagnetic air pump designed for domestic aerobic septic and wastewater treatment systems.
Using frictionless electromagnetic oscillation technology, the JDK-80 delivers reliable, low-noise aeration while consuming just 47–50 watts of power.
Engineered for continuous operation, it provides stable oxygen transfer to support healthy bacterial breakdown and reduced system odours.
Key Features
Long Life Expectancy
Motor and pump components are integrated into a compact single construction. The simplified mechanism ensures consistent performance and long operating life.
Ultra Low Power Consumption
Electromagnetic oscillation technology operates with virtually no mechanical friction, significantly reducing energy usage.
Quiet & Low Vibration Operation
A soundproof casing and integrated muffler reduce operating noise, while vibration-isolating rubber components minimise movement.
Completely Oil Free
Delivers clean, dry airflow with no risk of contamination.
Pulsation Free Airflow
Specially formed pump chambers and an integrated muffler provide smooth, stable airflow to your treatment system.
Weatherproof Construction
Designed to be rain-resistant and suitable for outdoor installation. Note, it should be installed under cover and not exposed to direct sun, heavy rain or snow.
Serviceable Design
Universal service kits are available for diaphragm replacement and maintenance, extending pump lifespan.
Technical Specifications
- Model: JDK-80
- Voltage: 220VAC
- Frequency: 50Hz
- Power Consumption: 47–50W
- Maximum Air Flow: Up to 80L/min
- Maximum Operating Pressure: 25kPa
- Rated Pressure: 20kPa
- Noise Level: Approx. 38–40 dB(A)
- Connection Size: 19mm outer diameter
- Net Weight: Approx. 6 kg
- Dimensions: 214mm L x 185mm W x 211mm H
Performance values may vary slightly depending on installation conditions.
Applications
The Secoh JDK-80 is commonly used in:
- Domestic aerobic septic systems
- Household wastewater treatment plants
- Secondary treatment systems
- Small commercial wastewater systems
- Aquaculture and pond aeration
It is ideal for systems requiring consistent, energy-efficient aeration.
Frequently asked questions
Is the JDK-80 suitable for my septic system?
The JDK-80 is designed for domestic aerobic wastewater systems that require approximately 80 litres per minute airflow. Always confirm your system’s airflow requirement before purchase.
How energy efficient is the JDK-80?
The Secoh JDK-80 consumes approximately 47–50 watts, similar to a small light bulb, making it one of the most efficient linear air pumps available.
Is the JDK-80 noisy?
No. With an operating noise level around 38–40 dB(A), it runs quietly and is suitable for residential installations.
Can the diaphragms be replaced?
Yes. JDK-80 Service kits are available and allow cost-effective maintenance without replacing the entire pump.
Is it weatherproof?
The unit is rain resistant but should be installed under cover and not exposed to direct sunlight or extreme weather.
Warranty
The Secoh JDK-80 includes a 2 Year Manufacturer Warranty.
Please note that our warranty covers the internal components of the pump. In the event of a fault or failure within the 2-year period, we provide a complimentary Replacement Chamber Block Kit to restore your pump to full operation.
Replacement diaphragm kits and spare parts are readily available to extend the operational life of the pump.
