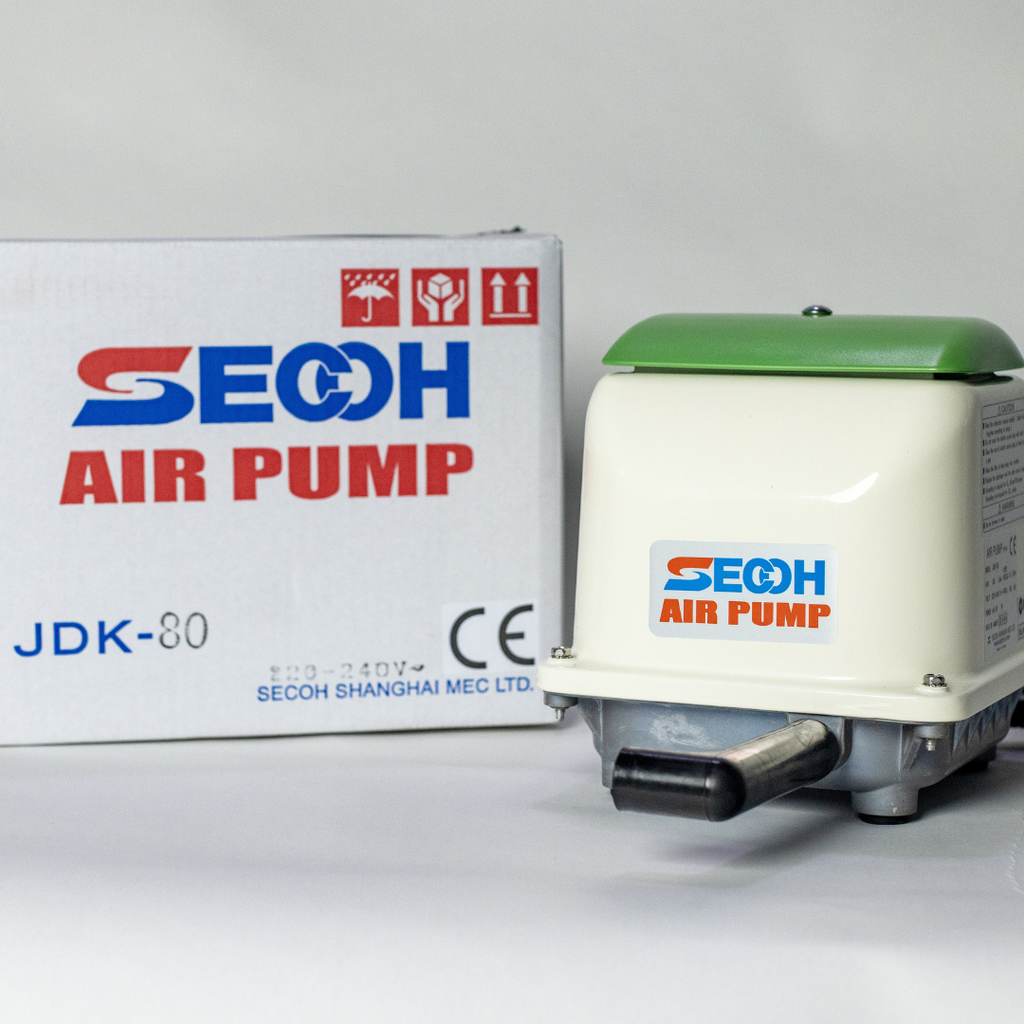

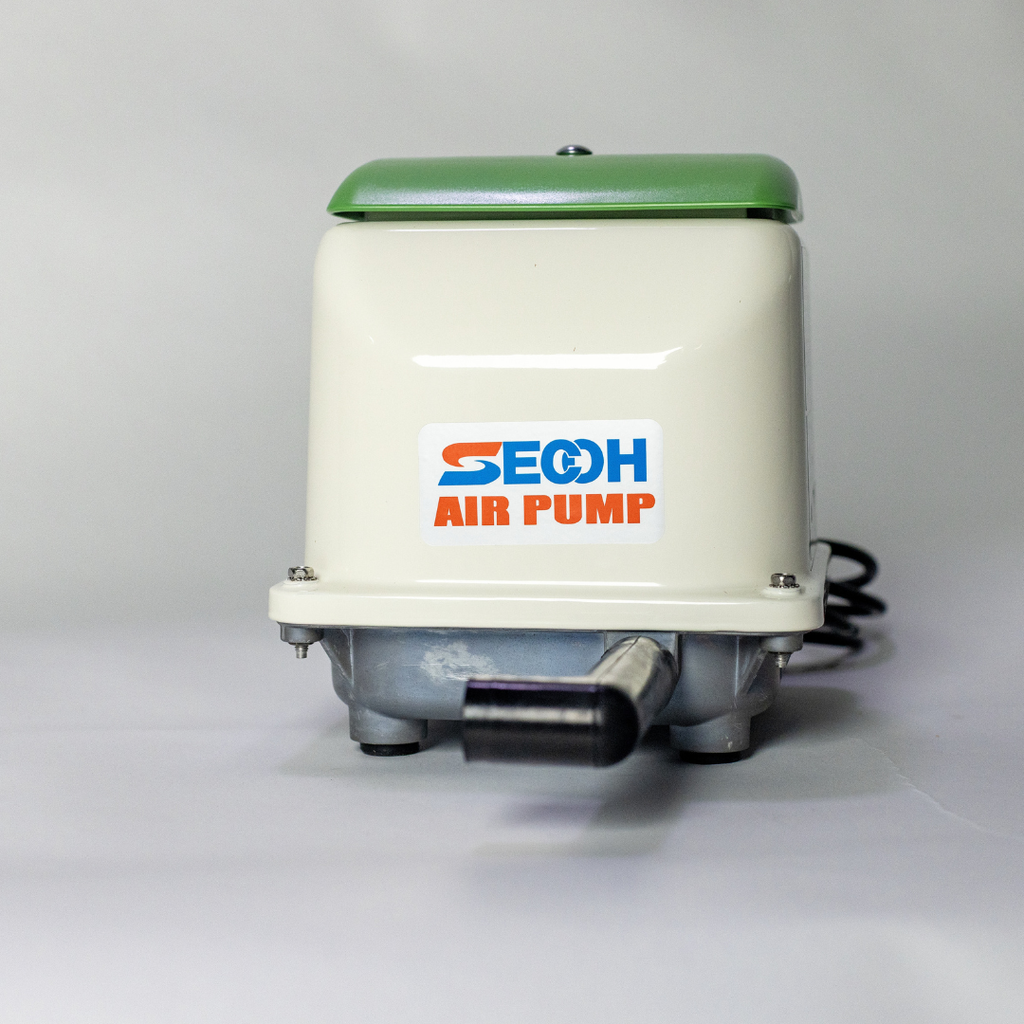

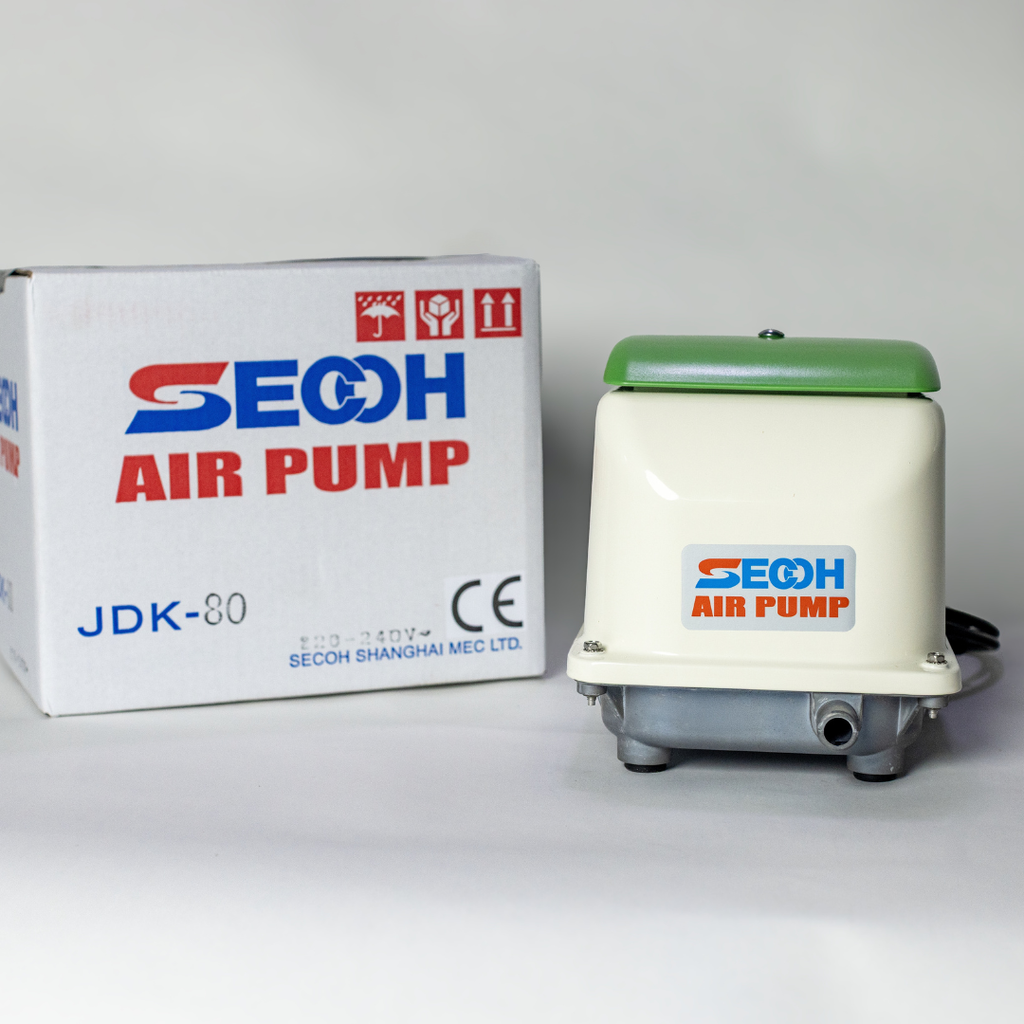

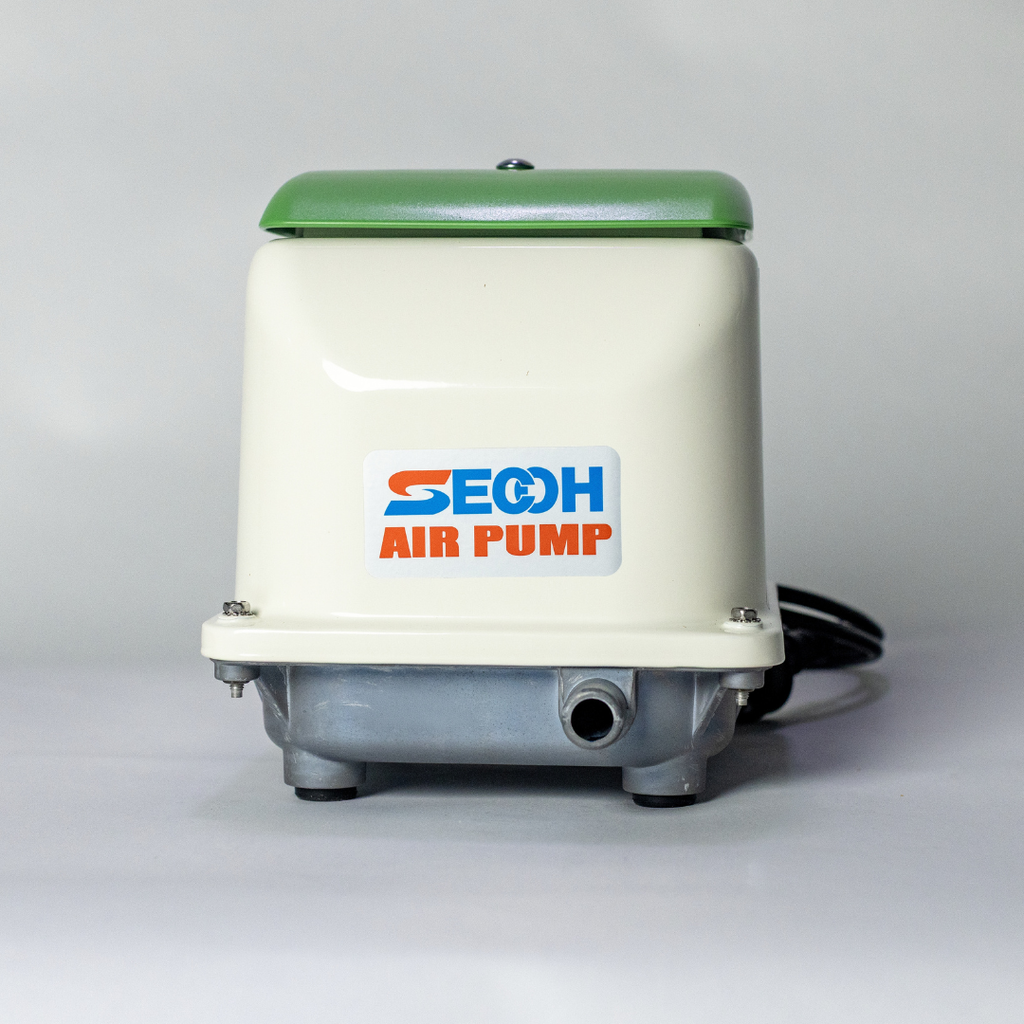

The Secoh JDK-80 Linear Septic Air Pump is an energy-efficient 47W linear diaphragm air pump for domestic aerobic septic systems.
Quiet, low vibration performance with reduced odours.
See full product description below.
|
POWER |
P1 (W) |
RATED PRESSURE |
RATED OUTLET AIRFLOW |
OPTIMUM BACK PRESSURE |
SOUND LEVEL |
AMBIENT TEMPERATURE |
OUTLET (MM) |
WEIGHT (KG) |
SIZE L x W x H (mm) |
|
230V |
45 |
18 kPa |
80 L/min |
kPa |
38 dBA |
-10oC to +40oC |
19 |
5 |
214x185x211 |
Product No. 0100
Designed and developed by Secoh PRC and Secoh Australia.
Built for long service life, power saving & low maintenance.
Dispatched from our Australian warehouse.
The Secoh JDK-80 Linear Diaphragm Air Pump is a high-efficiency 220V electromagnetic air pump designed for domestic aerobic septic and wastewater treatment systems.
Using frictionless electromagnetic oscillation technology, the JDK-80 delivers reliable, low-noise aeration while consuming just 47–50 watts of power.
Engineered for continuous operation, it provides stable oxygen transfer to support healthy bacterial breakdown and reduced system odours.
Motor and pump components are integrated into a compact single construction. The simplified mechanism ensures consistent performance and long operating life.
Electromagnetic oscillation technology operates with virtually no mechanical friction, significantly reducing energy usage.
A soundproof casing and integrated muffler reduce operating noise, while vibration-isolating rubber components minimise movement.
Delivers clean, dry airflow with no risk of contamination.
Specially formed pump chambers and an integrated muffler provide smooth, stable airflow to your treatment system.
Designed to be rain-resistant and suitable for outdoor installation. Note, it should be installed under cover and not exposed to direct sun, heavy rain or snow.
Universal service kits are available for diaphragm replacement and maintenance, extending pump lifespan.
Performance values may vary slightly depending on installation conditions.
The Secoh JDK-80 is commonly used in:
It is ideal for systems requiring consistent, energy-efficient aeration.
The JDK-80 is designed for domestic aerobic wastewater systems that require approximately 80 litres per minute airflow. Always confirm your system’s airflow requirement before purchase.
The Secoh JDK-80 consumes approximately 47–50 watts, similar to a small light bulb, making it one of the most efficient linear air pumps available.
No. With an operating noise level around 38–40 dB(A), it runs quietly and is suitable for residential installations.
Yes. JDK-80 Service kits are available and allow cost-effective maintenance without replacing the entire pump.
The unit is rain resistant but should be installed under cover and not exposed to direct sunlight or extreme weather.
The Secoh JDK-80 includes a 2 Year Manufacturer Warranty.
Please note that our warranty covers the internal components of the pump. In the event of a fault or failure within the 2-year period, we provide a complimentary Replacement Chamber Block Kit to restore your pump to full operation.
Replacement diaphragm kits and spare parts are readily available to extend the operational life of the pump.
