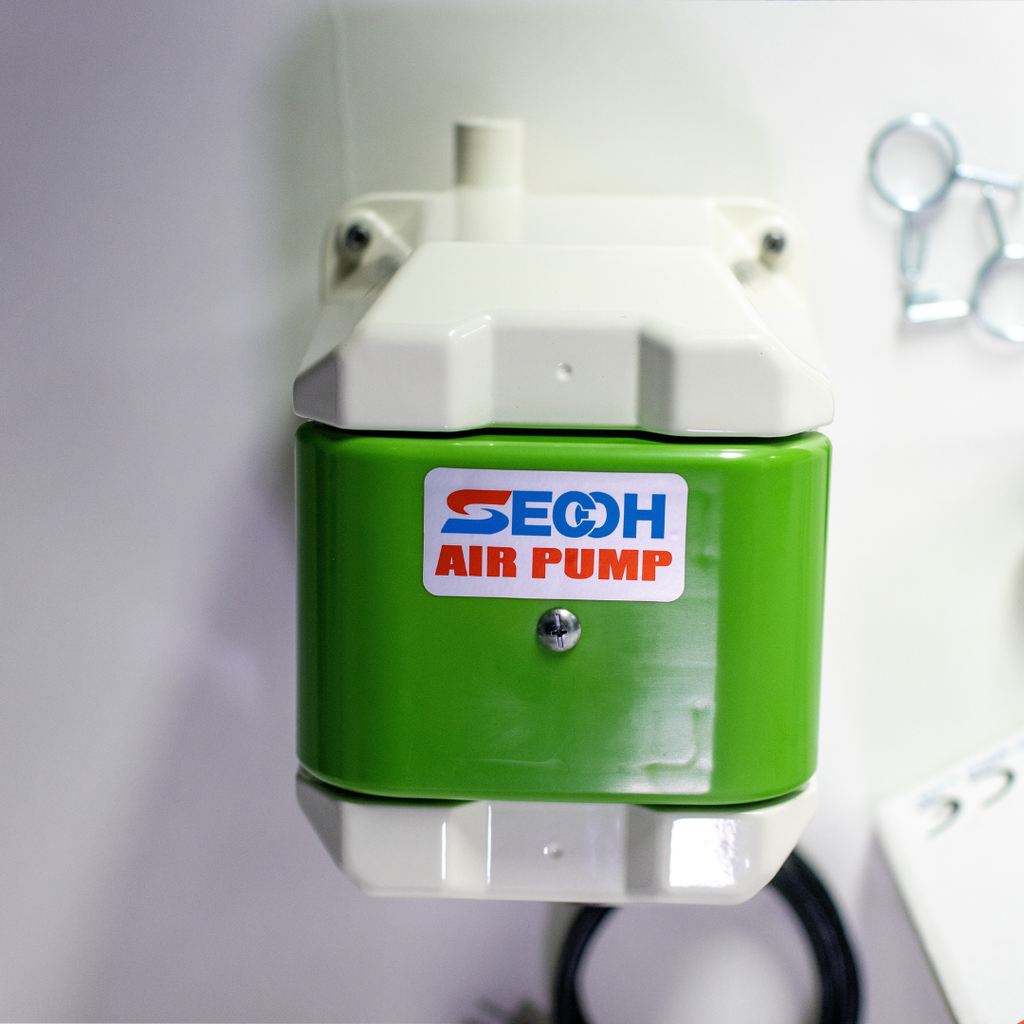

The Secoh TKO-200 is a high-output 200L/min linear diaphragm air pump designed for larger domestic and commercial wastewater systems.
Energy-efficient, low-vibration, and built for reliable, continuous operation.
See full product description below.
|
POWER |
P1 (W) |
RATED PRESSURE |
RATED OUTLET AIRFLOW |
OPTIMUM BACK PRESSURE |
SOUND LEVEL |
AMBIENT TEMPERATURE |
OUTLET (MM) |
WEIGHT (KG) |
SIZE L x W x H (mm) |
|
230V |
170 |
20 kPa |
200 L/min |
20 kPa |
48 dBA |
-10oC to +40oC |
26 |
10 |
240x180x230.5 |
Product No. 0200
Designed and developed by Secoh PRC and Secoh Australia.
Built for long service life, power saving & low maintenance.
Dispatched from our Australian warehouse.
The Secoh TKO-200 Linear Diaphragm Air Pump is a high-output 220V electromagnetic air pump engineered for larger domestic and commercial wastewater treatment systems.
Delivering up to 200 litres per minute airflow, the TKO-200 is designed for installations requiring higher oxygen transfer and stable pressure performance while maintaining energy efficiency and low operating noise.
Built using Secoh’s proven electromagnetic oscillation technology, the TKO-200 operates with minimal mechanical friction for long service life and dependable continuous operation.
Provides up to 200 L/min airflow, ideal for larger aerobic septic and wastewater systems.
Consumes approximately 170–180W, delivering strong airflow relative to power usage.
Motor and pump components are integrated into a compact single construction. The simplified design ensures long-term durability and reliable operation.
Soundproof casing and integrated muffler reduce operating noise, while vibration-isolating rubber components minimise movement.
Delivers clean, dry and contaminant-free airflow to your treatment system.
Specially formed pump chambers provide smooth, consistent oxygen delivery.
Designed for outdoor installation (should be protected from direct sun and extreme weather exposure).

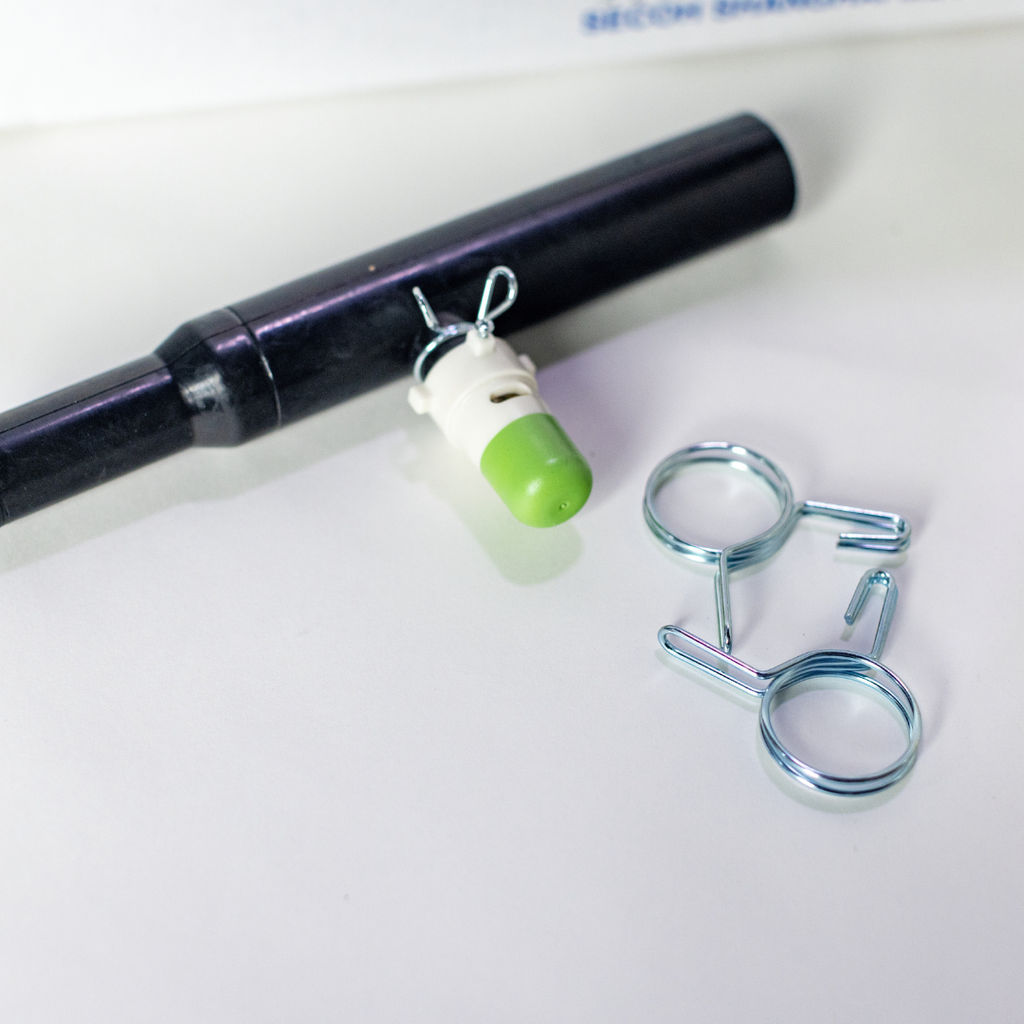

Supplied with a pressure relief valve as a standard accessory. If this valve is not installed, then it is outside of our warranty obligations to replace, as this valve is essential to the longevity of the pump.
Performance values may vary slightly depending on installation conditions.
The Secoh TKO-200 is suitable for:
It is ideal where a higher airflow capacity is required compared to standard domestic units.
The JDK series focuses on compact, ultra-low energy residential applications.
The TKO series is engineered for higher airflow output and more demanding installations while maintaining the same electromagnetic efficiency technology.
Choose the TKO-200 if your system requires approximately 200 L/min airflow capacity.
Yes, for larger domestic aerobic systems requiring higher airflow capacity, or for small commercial application.
It operates at approximately 46–48 dB(A), making it suitable for most outdoor installations.
Yes. Service kits are available to extend operational lifespan.
Yes. The Secoh TKO-200 operates completely oil-free, ensuring clean air delivery.
Yes, a pressure relief valve is included as standard and is essential to be installed with the pump for its longevity.
The Secoh TKO-200 includes a 12 Month Manufacturer Warranty.
Please note you must meet the following warranty requirements:
Replacement diaphragm kits and spare parts are readily available to extend the pump's operational life.
