Secoh TKO-200 Chamber Block Kit
$345.00
Secoh TKO-200 Genuine Chamber Block Kit
The Secoh TKO-200 Genuine Chamber Block Kit is an official Secoh repair kit designed specifically to restore your TKO-200 Air Pump to original factory performance.
Using genuine Secoh components ensures a correct fit, optimal airflow, and long-term reliability, while avoiding the risks associated with aftermarket or non-genuine parts.
This kit provides the essential components required to rebuild the pump, offering a cost-effective alternative to full replacement while maintaining manufacturer specifications.
Kit Includes:
- 1 New Air Filter

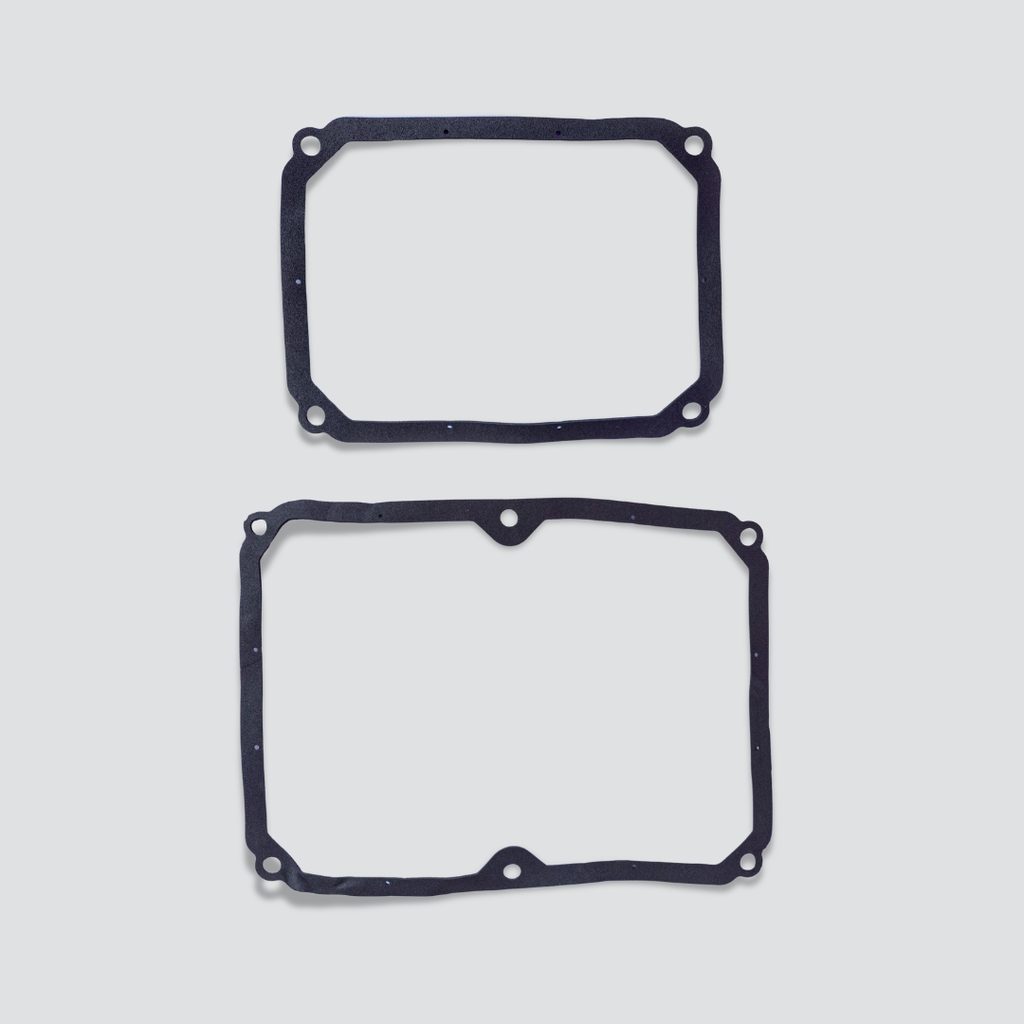

- 1 Lid Gasket
-
1 Bottom Gasket
-
2 New Secoh Chamber Blocks with Rubber Diaphragms
-
1 Actuating Rod Locater
- Actuating Rod Nuts
You will also notice that the spare parts are vac-packed. This keeps the internal diaphragms in perfect condition until such time when the packaging is opened.
Manufactured to Secoh’s strict engineering standards, this genuine service kit guarantees compatibility, performance and durability for your TKO-200 Air Pump.
Product Dimensions: 1kg, 200 L x 200 W x 100 H (mm)
Product No. 0201
Customer reviews
Powered by Audien
Show more reviews
Customer reviews
Powered by Audien
0
0
reviews
Write a review
Powered by Audien
Merchant description
Show more
Featured
Show more reviews
Designed for Australian Conditions
Designed and developed by Secoh PRC and Secoh Australia.
Proven Reliability
Built for long service life, power saving & low maintenance.
Fast AU-Wide Shipping
Dispatched from our Australian warehouse.
Product Description
Overview
The Secoh TKO-200 Linear Diaphragm Air Pump is a high-output 220V electromagnetic air pump engineered for larger domestic and commercial wastewater treatment systems.
Delivering up to 200 litres per minute airflow, the TKO-200 is designed for installations requiring higher oxygen transfer and stable pressure performance while maintaining energy efficiency and low operating noise.
Built using Secoh’s proven electromagnetic oscillation technology, the TKO-200 operates with minimal mechanical friction for long service life and dependable continuous operation.
Key Features
High Output Performance
Provides up to 200 L/min airflow, ideal for larger aerobic septic and wastewater systems.
Energy Efficient for Its Class
Consumes approximately 170–180W, delivering strong airflow relative to power usage.
Long Life Expectancy
Motor and pump components are integrated into a compact single construction. The simplified design ensures long-term durability and reliable operation.
Low Noise & Low Vibration
Soundproof casing and integrated muffler reduce operating noise, while vibration-isolating rubber components minimise movement.
Completely Oil Free
Delivers clean, dry and contaminant-free airflow to your treatment system.
Pulsation Free Airflow
Specially formed pump chambers provide smooth, consistent oxygen delivery.
Weather Resistant
Designed for outdoor installation (should be protected from direct sun and extreme weather exposure).
Pressure Relief Valve Included
Supplied with a pressure relief valve as a standard accessory. If this valve is not installed, then it is outside of our warranty obligations to replace, as this valve is essential to the longevity of the pump.
Technical Specifications
- Model: Secoh TKO-200
- Voltage: 220VAC
- Frequency: 50Hz
- Power Consumption: 170–180W
- Maximum Airflow: Up to 200 L/min
- Operating Range: 15–30 kPa
- Rated Pressure: 20 kPa
- Noise Level: Approx. 46–48 dB(A)
- Dimensions: (L × W × H): 240 × 180 × 230 mm
- Connection Size: 26mm outer diameter
- Net Weight: Approx. 10kg
- Dimensions: 240mm L x 180mm W x 230.5mm H
Performance values may vary slightly depending on installation conditions.
Applications
The Secoh TKO-200 is suitable for:
- Larger domestic aerobic septic systems
- Commercial wastewater treatment plants
- Industrial aeration systems
- Aquaculture systems
- High-demand oxygenation installations
It is ideal where a higher airflow capacity is required compared to standard domestic units.
JDK vs TKO – What’s the Difference?
The JDK series focuses on compact, ultra-low energy residential applications.
The TKO series is engineered for higher airflow output and more demanding installations while maintaining the same electromagnetic efficiency technology.
Choose the TKO-200 if your system requires approximately 200 L/min airflow capacity.
Frequently asked questions
Is the TKO-200 suitable for residential systems?
Yes, for larger domestic aerobic systems requiring higher airflow capacity, or for small commercial application.
How loud is the TKO-200?
It operates at approximately 46–48 dB(A), making it suitable for most outdoor installations.
Can the diaphragms be replaced?
Yes. Service kits are available to extend operational lifespan.
Is it oil free?
Yes. The Secoh TKO-200 operates completely oil-free, ensuring clean air delivery.
Does it include a pressure relief valve?
Yes, a pressure relief valve is included as standard and is essential to be installed with the pump for its longevity.
Warranty & Installation
The Secoh TKO-200 includes a 12 Month Manufacturer Warranty.
Please note you must meet the following warranty requirements:
- Condition of Warranty: To validate your warranty, the Pressure Relief Valve (included) must have been installed with the pump. This protects the unit from back-pressure and ensures a long operational life.
- Service & Repair: In the event of a standard component failure within the warranty period, we provide a complimentary Replacement Chamber Block Kit.
- Motor Protection: In the unlikely event of a motor seizure, we will provide a full replacement Air Pump unit.
Replacement diaphragm kits and spare parts are readily available to extend the pump's operational life.
